Release notes

v1.1.0 (10-08-2021)
  • Add some for preparing the next workshop on 2021-08-13T09:00

    • Add instructor demo Jenkins Time Trigger in Jenkinsfile

    • Add prepare instructions

  • Add remark regarding Jenkins .war

v1.0.2 (25-06-2021)
  • Add explain and fix for using Periodically build

  • Fix a typo in link below Exercise: Build Triggers

  • Add note so that I do not forget to stop recording

Preparation actions to rerun the workshop

Preparation actions
  • Remove the old volumes from previous sessions (See tip below)

  • Remove the time based triggers in Jenkinsfile before the workshop

When that is problematic since some containers are using the previous volumes here is how to find out
docker ps -a --filter volume=VOLUME_NAME_OR_MOUNT_POINT

Intro and Agenda

Perhaps stop the recording of this session
Very short personal introduction for the student
  • Target of this workshop is to learn Jenkins, if that is your target also than that is enough intro

  • More about me?

    • LinkedIn: Raymond Loman, owner of Carpago Software

    • Resume

  • Personal questions or problems you are currently experiencing with Jenkins ???

Planning

Time

09:00 - 12:00 (GMT+02:00)

3.0 hours x 2 = 6 pomodoros workshop time

Legenda

Explain how exercises are setup
  • Target

  • Situation (if there is a particular situation e.g. a Github repo)

  • Roadmap

  • Steps

  • Validation

Assumed Knowledge

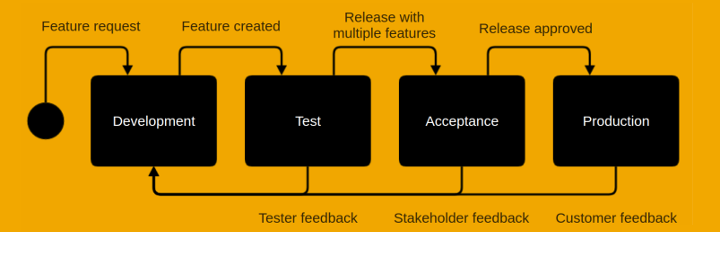

OTAP

OTAP ::= Ontwikkel ⇒ Test ⇒ Acceptatie ⇒ Productie

otap

What is a build

Generally said, a build is a deployable, mostly binary product which is based on the source-code of the team

CI & CD(1) & CD(2)
  • CI ::= Continuous Integration

    • When making changes to a (Github || Gitlab || Bitbucket) code repo, there is someone who automatically tests the software e.g. that is will build correctly. That someone here is from now on our Jenkins machine :-)

  • CD(1) ::= Continuous Delivery

    • CI+Shipping the software to that it is READY to be set in production

  • CD(2) ::= Continuous Deployment

    • Directly shipping software to production

1. Topic: Jenkins Introduction

  • Jobs

  • Jenkinsfile

  • Triggers

  • Pipeline(s)

Which problem is solved by Jenkins
  • Testing and Integration testing of the sourcecode

  • Installation of the build

  • Perhaps restart of the server / container / update the cluster

2. Topic: Jenkins Installation

The instructor will demo how we can install Jenkins - using Docker or Java - and get started with Jenkins.

This preludes the exercise which is upcoming next.

2.1. Exercise: Jenkins Installation and Configuration

Assumption
  1. Whether you are using Docker

    • See below instructions

  2. Or you are using the Jenkins WAR to run Jenkins: https://www.jenkins.io/download/

    • Usage: java -jar jenkins.war

    • The instruction below regarding the secret key apply also for running Jenkins as a .war file

  3. Or you just like to watch the trainer do the exercise

Situation

If there is someone with no experience with Docker or has no Docker experience and has no Java JRE the trainer will do the exercise with and for them in a separate Zoom room or just in the same global room.

Perhaps split the room in some clusters?

Target

To learn how to get Jenkins started and to login to Jenkins

Roadmap

During this exercise we will install Jenkins using a prepared Docker image and login to Jenkins

Step I
  • Using Docker get the rloman/workshop-jenkins:1.0.0 image from docker.io

    • docker image pull rloman/workshop-jenkins:1.0.0

The name argument in the next line is prefixed with two dashes, while the other arguments are prefixed with one dash
Invoke the next statement on one line!
Step II
  • Create a Docker container on port 8080

    • docker container run -dit --name workshop-jenkins-container-1.0.0 -v jenkins_home:/var/jenkins_home -v /var/run/docker.sock:/var/run/docker.sock -p 8080:8080 -p 50000:50000 rloman/workshop-jenkins:1.0.0

NB: HTTP port 50000 in Jenkins is used for master-slave communication

Be sure to pull the image for now, and later, since updating the image only works with the docker pull command
Validation
  • Get the initial password for the admin user

    • Execute: docker container logs workshop-jenkins-container-1.0.0

    • ⇒ Will print somewhere a long hash which is the first initial password, copy that to your clipboard

  • Open a browser to http://localhost:8080

  • When started supply the password which you copied above

  • Apply Install suggested plugins

  • Have a cup of coffee (takes upto 1-2 minutes)

  • Create first admin user and fill in the form (and remember the username and password!)

  • Click Save and Continue

  • Accept the default Instance Configuration  Jenkins URL

  • Click Save and Finish

  • Click Start using Jenkins

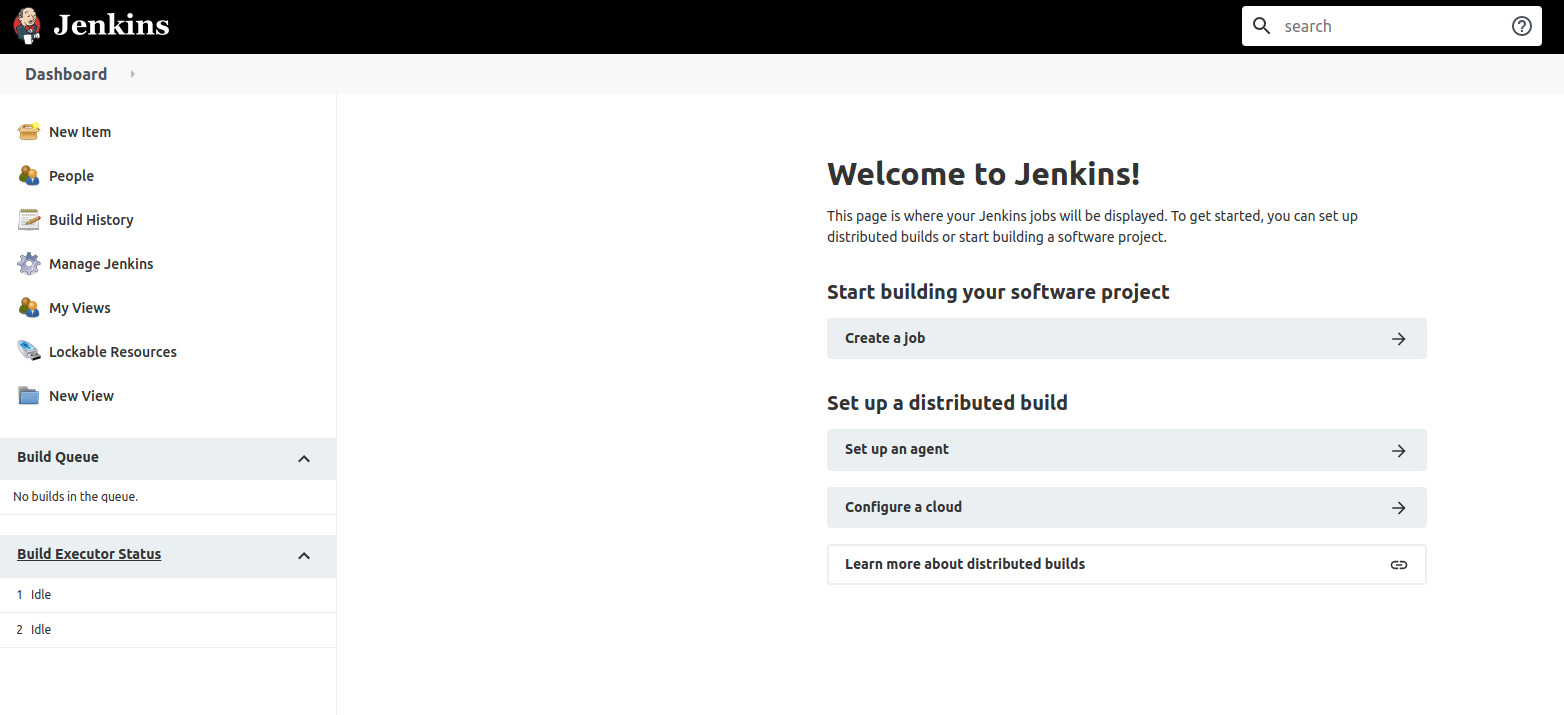

Congratulations

home jenkins

Summary of this exercise

We now have a running Jenkins machine using a Docker image and are able to login. In the next section we will conduct Jenkins to our needs

questions bumper

Progress



3. Topic: Jenkinsfile

What is the Jenkinsfile

The Jenkinsfile is the file from which Jenkins is able to build.

There are two ways of Jenkinsfiles
  • the programmatic (forget for now)

  • the declarative version of the Jenkinsfile which we will use during this workshop

Properties of the Jenkinsfile

The Jenkinsfile is a regular Groovy based file with statements in it which are invoked by Jenkins

Example Jenkinsfile (from the upcoming exercise (demo-app))
def gv; // holds the groovy script which in initialised below in the init step

pipeline {
    agent any
    environment {
        NEW_VERSION = "0.2.0-SNAPSHOT"
    }

    stages {
        stage("init") {
            steps {
                script {
                    gv = load "script.groovy"
                }
            }
        }
        stage("build") {
            steps {
                script {
                    gv.buildApp()
                }
                //sh 'mvn clean verify'
            }
        }
        stage("test") {
            steps { // for every branch
                echo "Testing the application ... "
            }
        }
        stage("acceptance") {
            when {
                anyOf {
                    branch 'release/*'; branch 'hotfix/*'
                }
            }
            steps {
                echo "Releasing the application to acceptance (using the release/ branch) ... "
                echo "Release the app with version: ${NEW_VERSION}"
                echo "Release the app with build number: ${BUILD_NUMBER}"
            }
        }
        stage("prod") {
            when {
                anyOf {
                    branch 'master'
                }
            }
            steps {
                echo "Deploying the application to production ... since the master branch is updated"
            }
        }
    }

    post {
        failure {
            echo "Build failed (in post)"
        }
        success {
            echo "Build succcess (in post)"
        }
        always {
            echo "Build completed in always (in post)"
        }
    }
}
Tips and Tricks related to Jenkinsfile
  • How do you find the Jenkins environment variables which are available for use in the Jenkinsfile

There is a lot more behind the scenes to know, write and learn regarding Jenkinsfile. Please follow the links below after this workshop to get more knowledge regarding this.

We will do a lot more with the Jenkinsfile in the next topic, regarding Development Pipeline

4. Topic: Development Pipeline

What is a Development Pipeline

A development pipeline is a flow through some steps during a build in which the software will be enriched by steps taking during the pipeline e.g. build  compile  test  inspect code on OWASP  integration tests  deploy to accept  production

Applying a Pipeline

We can have multiple branches in the Git repo which are all under build control in which the above mentioned pipeline can be applied. Some steps of the build above can be enabled or disabled per branch e.g. in the develop branch there is no deployment to production, but in the branch master there is of course a deployment to production

So in fact, a Multibranch pipeline is a matrix. Over the horizontal axis you will see the pipeline steps Over the vertical axis you will find the separate branches this Multibranch Pipeline applies to

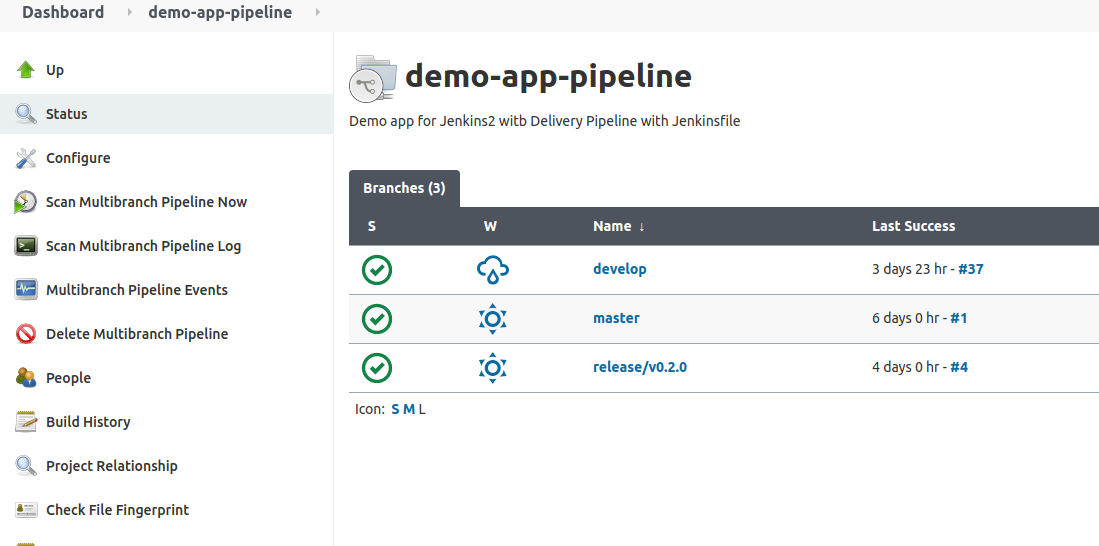

Multibranch Pipeline Overview

pipeline

The upcoming Demo and Exercise are both based on this repo

4.1. Instructor Demo

Target

To show what you can do with a Multibranch Pipeline item

Roadmap

The instructor will demo the usage of a Multibranch Pipeline

Situation
The appropriate steps will be shown now by the instructor
  • Create || Show a Jenkinsfile in the repo

  • Create a multibranch pipeline item

  • Add Branch Source

  • Set the repo url

    • We will be using Git and NOT GITHUB since Github was having issues regarding too many builds per halve hour in my previous session

  • Validate that Discover Branches is selected below Branch sources

  • Click Save

  • The Multibranch pipeline will start now if not ⇒

    • Invoke the build by clicking the Scan Multibranch Pipeline Now button

Progress



4.2. Exercise: Multibranch Pipeline

Target

To learn how to create a Jenkins Pipeline

Roadmap

During this exercise we will add a new job to Jenkins which in this case is a Multibranch Pipeline. We will create a build, test and release pipeline steps for the develop branch using the demo-app provided by the trainer

In the following Steps be warned that the selection of Source repo must be Git and not Github since there are a maximum pulls per hour on that plugin and that hinders us during this workshop
Steps
  • Create a Multibranch Pipeline

    • Jenkins  Dashboard  New Item  Enter an item name e.g. 'demo-app pipeline'  Click Multibranch Pipeline (below)  OK

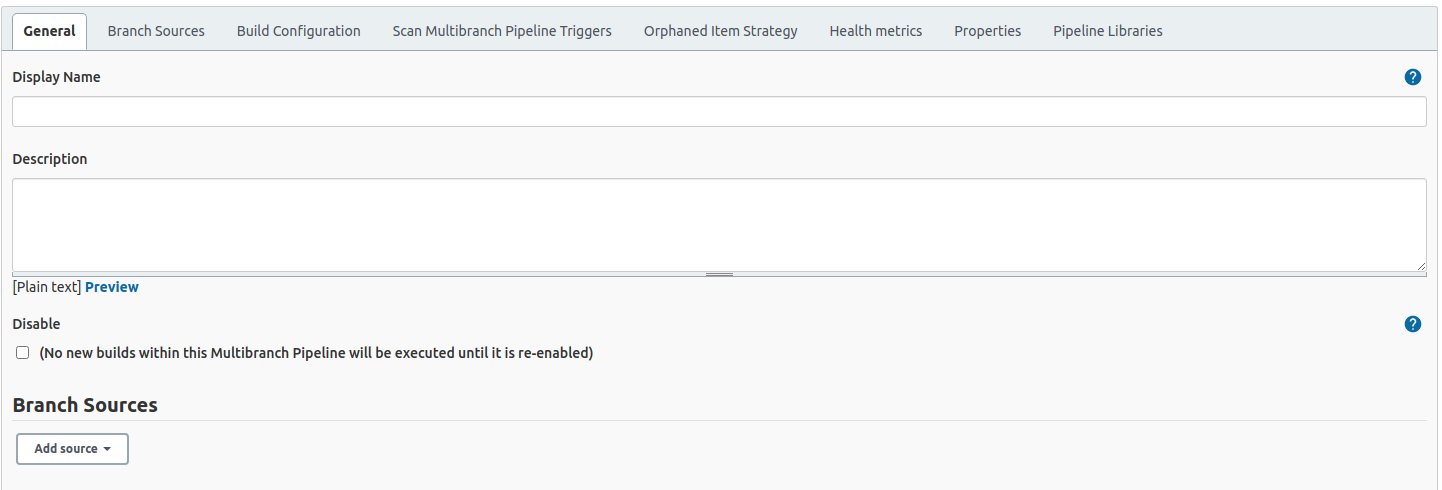

    • In tab General under Branch Sources click Add source pipeline general

    • Git  Fill in the Project Repository  'https://github.com/rloman/jenkins-demo-app.git'

      • Leave Credentials open since it is a public repository

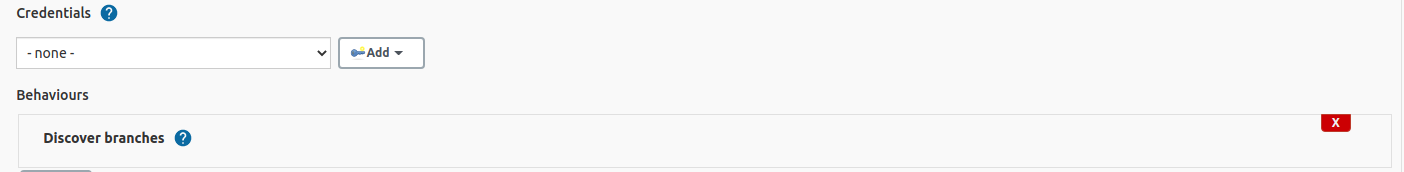

    • Validate that just below Credentials there is selected menu:[Behaviours > Discover branches ] general behaviours

      • Leave that intact, it means that Jenkins will automagically add branches which are new to the build pipeline

    • Save by clicking the Save button below

  • The build should start, if not ⇒

  • Invoke the Multibranch Pipeline Scan

    • Click the Scan Multibranch Pipeline Now button

Validation
  • Jenkins should now build the appropriate branches as shown in the demo above after clicking the Scan Multibranch Pipeline Now button

Tips and Tricks related to Pipeline
  1. Replay a Pipeline job with eventually changing the build scripts

    • You can Replay a Pipeline job by clicking on the Replay button and selecting branchname  build  Replay on the Pipeline job. That is a handy feature when you want to re-run an existing perhaps before failing job.

You can even change the build scripts before starting the build!

questions bumper

Progress



5. Topic: Triggers

Definitions
  • Crontab (from chrono) means setting a Linux based String to express some time (wildcards are allowed)

    • Syntax: MINUTE HOUR DATE MONTH WEEKDAY e.g. 30 6 * * 1-5 runs at 6:30 everydate and everymonth on every workday

In Jenkins we have several way to trigger a build
  • By manually starting a build

  • By setting a Build Trigger Configuration the configuration section

  • By setting a crontab expression on which time the build should run in Jenkinsfile

  • By setting a webhook so that Jenkins gets a signal from Github when a change in the code has occurred

    • This is beyond the scope of this training

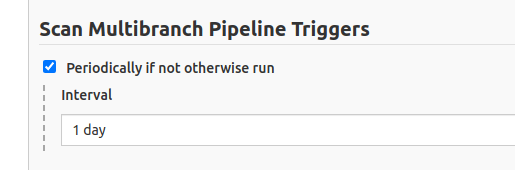

Build Triggers Configuration for a Multibranch Pipeline build

trigger in jenkins for multibranch pipeline

Or use this declaration of triggers in Jenkinsfile
// Declarative //
pipeline {
    agent any
    triggers {
        pollSCM('H/5 5-17 * * 1-5')  // <= Polls per appr. 5 minutes every hour from 5-17  every workday
    }
    stages {
         stage('Example') {
             steps {
                echo 'Hello World'
            }
        }
    }
}
The configurating using cron expressions is removed from Jenkins 2 in a Multibranch Pipeline. In that case you have to resort to the triggers section in the Jenkinsfile. Which is itself is handier of course, since the developer is now able to adjust the time based triggering
Instructor explanation

The instructor will explain some regarding crontab and the hashing function H/30 since that helps to spread the load evenly.

Tips regarding Triggers

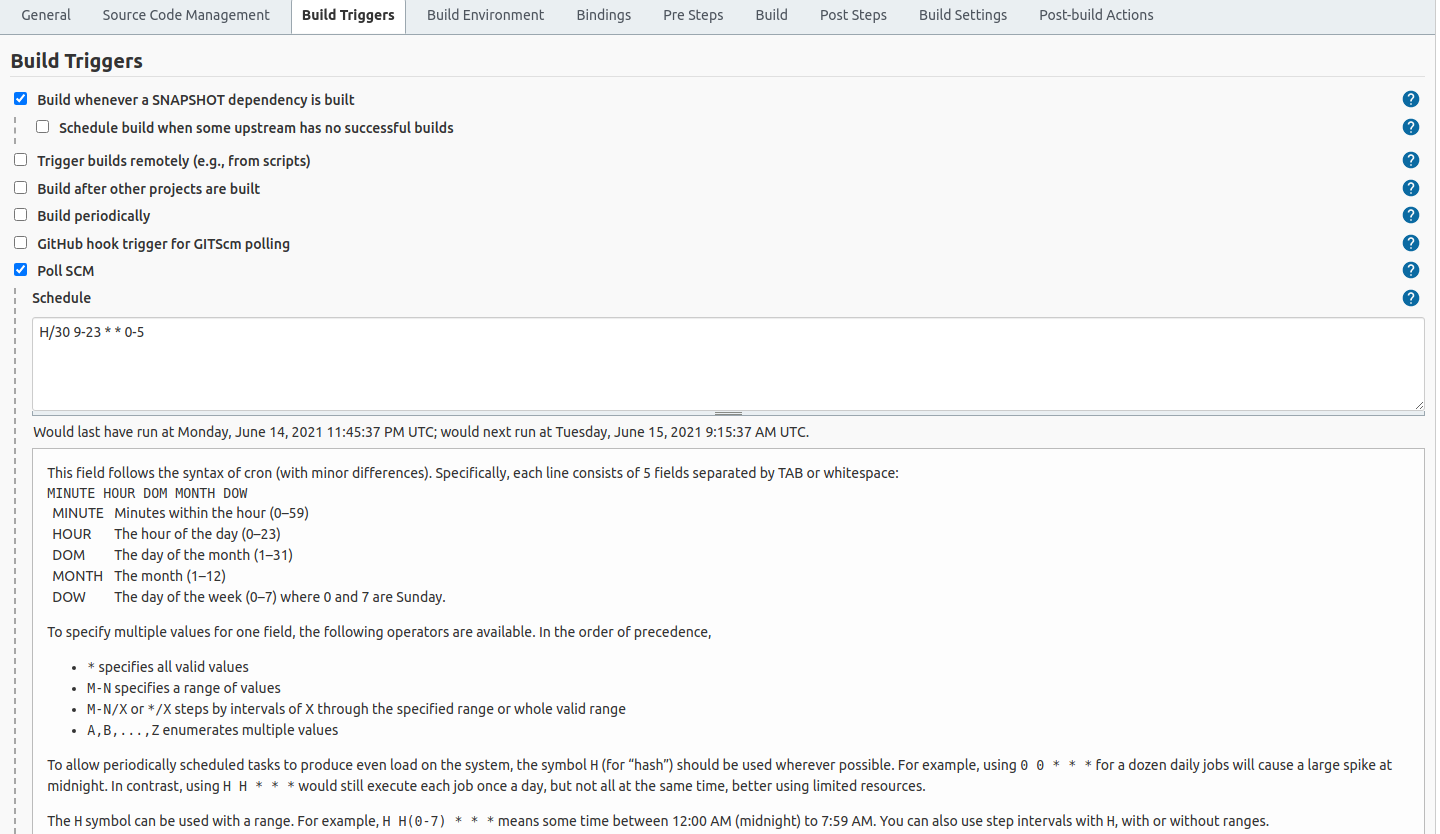

Appendix: Build Triggers Configuration for a Freestyle, no Multibranch Pipeline build (Not used in this training)

trigger poll scm

5.1. Demo: Build Trigger

Since this involves changing the Jenkinsfile, this is an instructor demo

During this demo the instructor will modify the Jenkinsfile to have a time based trigger appr. every 5 minutes

5.1.1. Steps

  • Add this to Jenkinsfile

pipeline {
    agent any
    // ...
    triggers {
        pollSCM('H/5 5-17 * * 1-5')  // <=
    }
    stages {
    // ...
    }
}
  • Push to develop

  • Trigger the Scan Multibranch Pipeline now since that will for this time update the Jenkinsfile for the last time manually!

  • Modify some else in the Jenkinsfile e.g. make a typo

  • Push it again

  • Grap a coffee

  • After grabbing a coffee Jenkins should have automatically have invoked the Scan Multibranch Pipeline of develop branch and have found a broken build

  • Fix the build

Validation
  • After 4-5 minutes Jenkins must have rebuild to status OK

5.2. Exercise: Build Triggers

Situation

We are going to use the demo-app Jenkins project again https://github.com/rloman/jenkins-demo-app.git

Target

To learn how to set a build trigger to run every minute

Roadmap

During this assignment you will set to run the Jenkins job every minute

Steps

In Jenkins, go to Job  Configure  Build Configuration  Scan Multibranch Pipeline Triggers  Click Periodically if not otherwise run  Select 1 minute  Save

Normally you would run that job not every minute but for the training-effect it is handy to run it every minute
Validation

Jenkins should automatically start the Multibranch Pipeline build every minute, if not otherwise run

Finish

Set the trigger to every 30 minutes to prevent Jenkins from continuously building

questions bumper

Progress



6. Topic: Notifications

The Instructor will show you some notification which are possible in Jenkins
  • E-mail notification

  • Telegram notification

6.1. E-mail notification

Setup location
  • Manage Jenkins  System Configuration  Configure System

Setup System Admin e-mailaddress

system admin email address

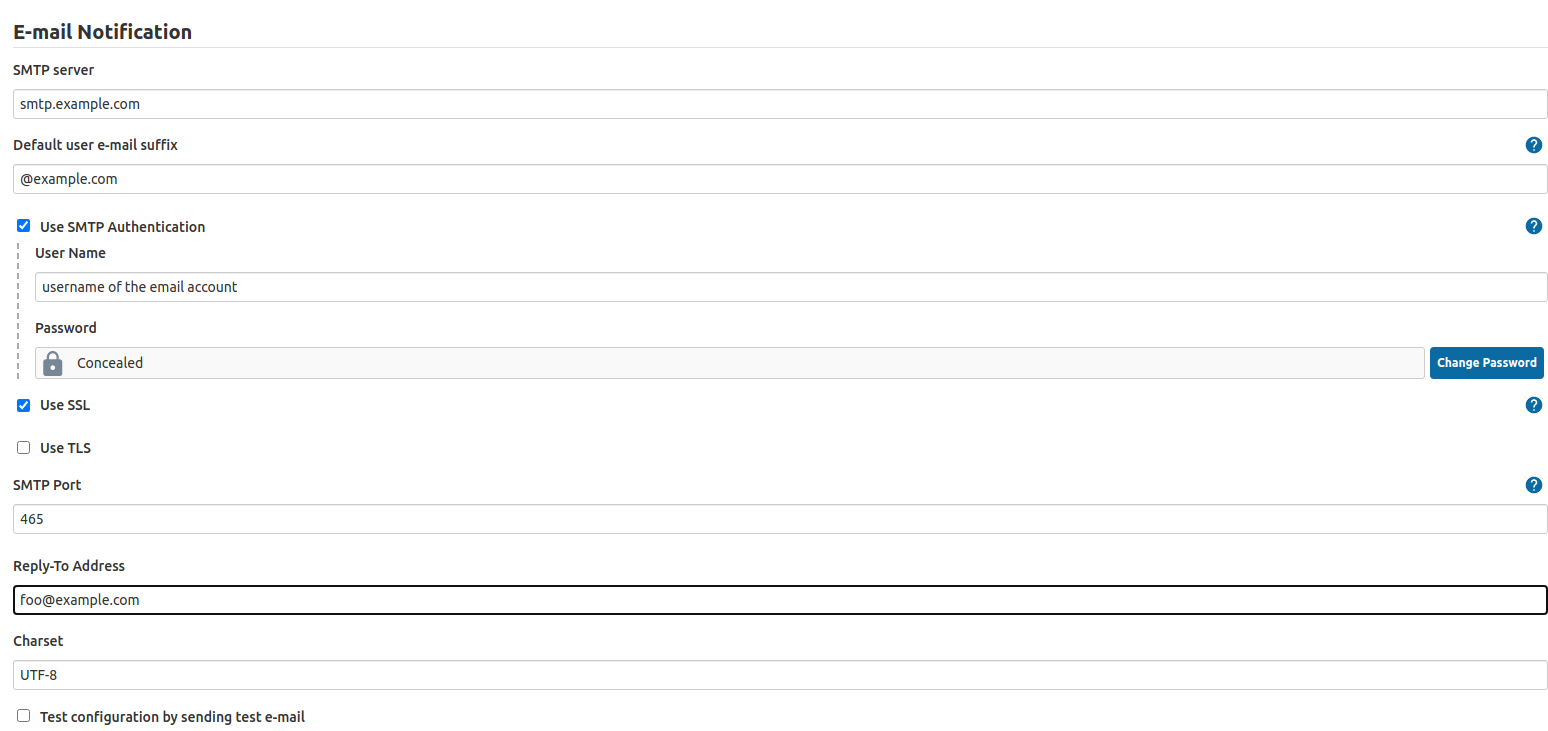

Step setup general e-mail notification settings

e mail notification

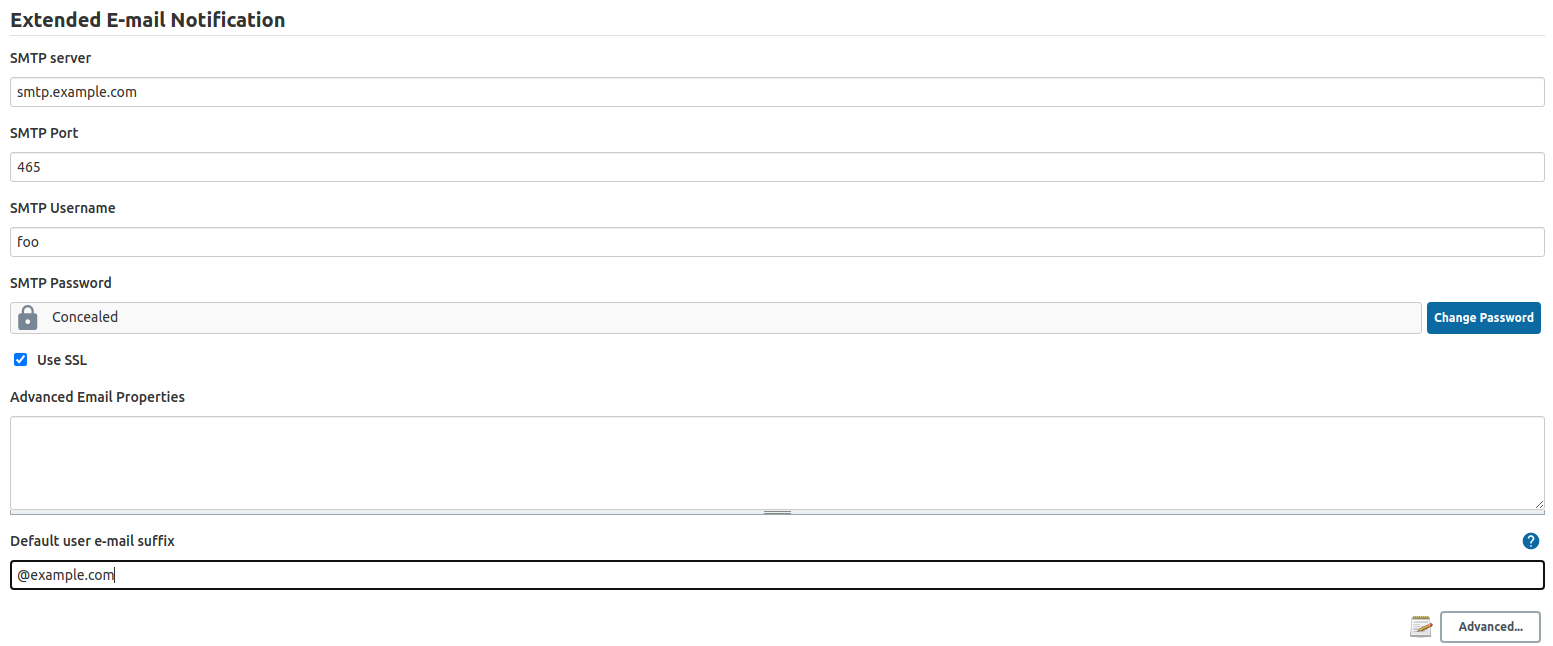

Step setup extended E-mail notification part I

extended email notification part I

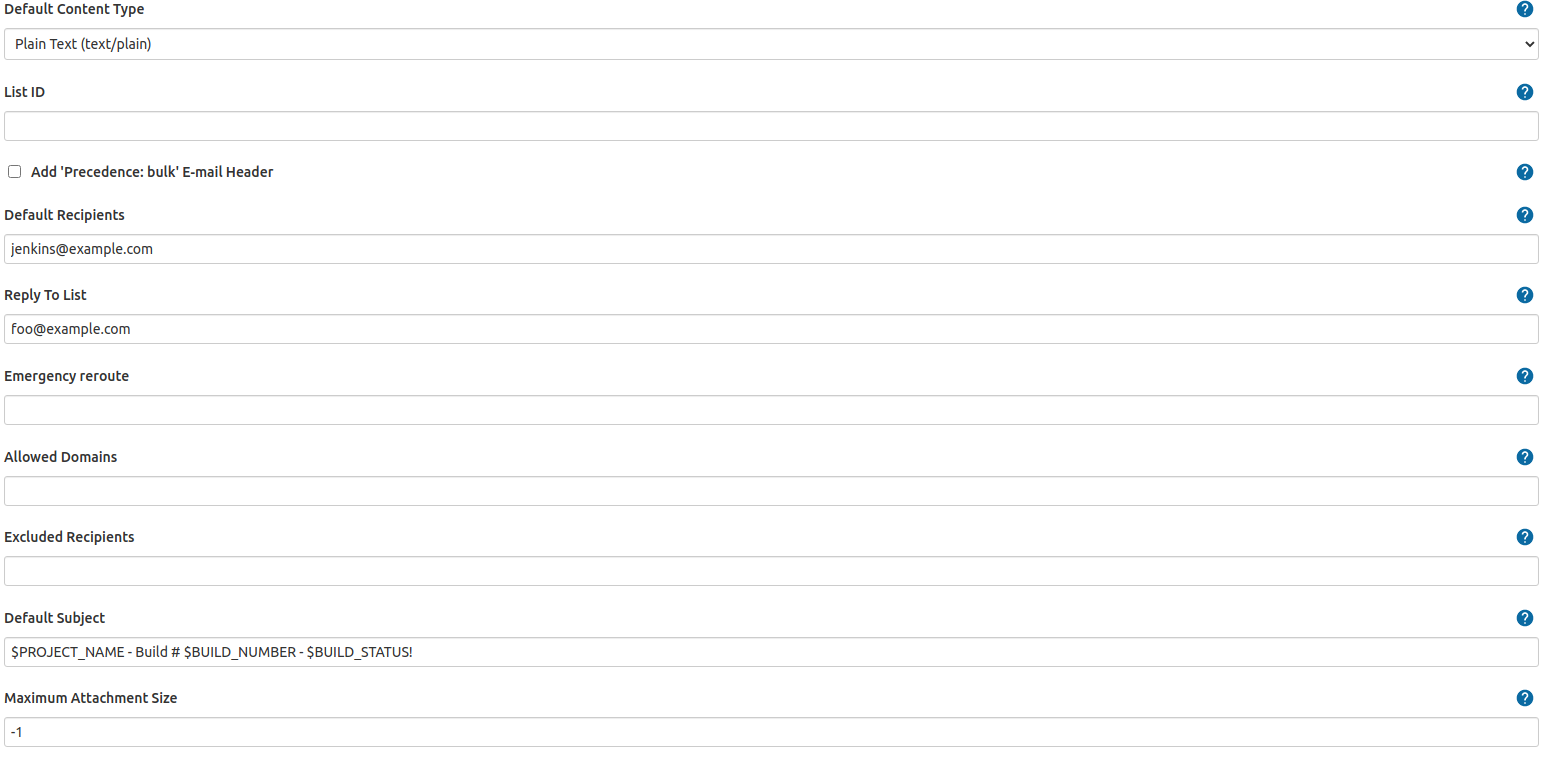

Step setup extended E-mail notification part II

extended email notification part II

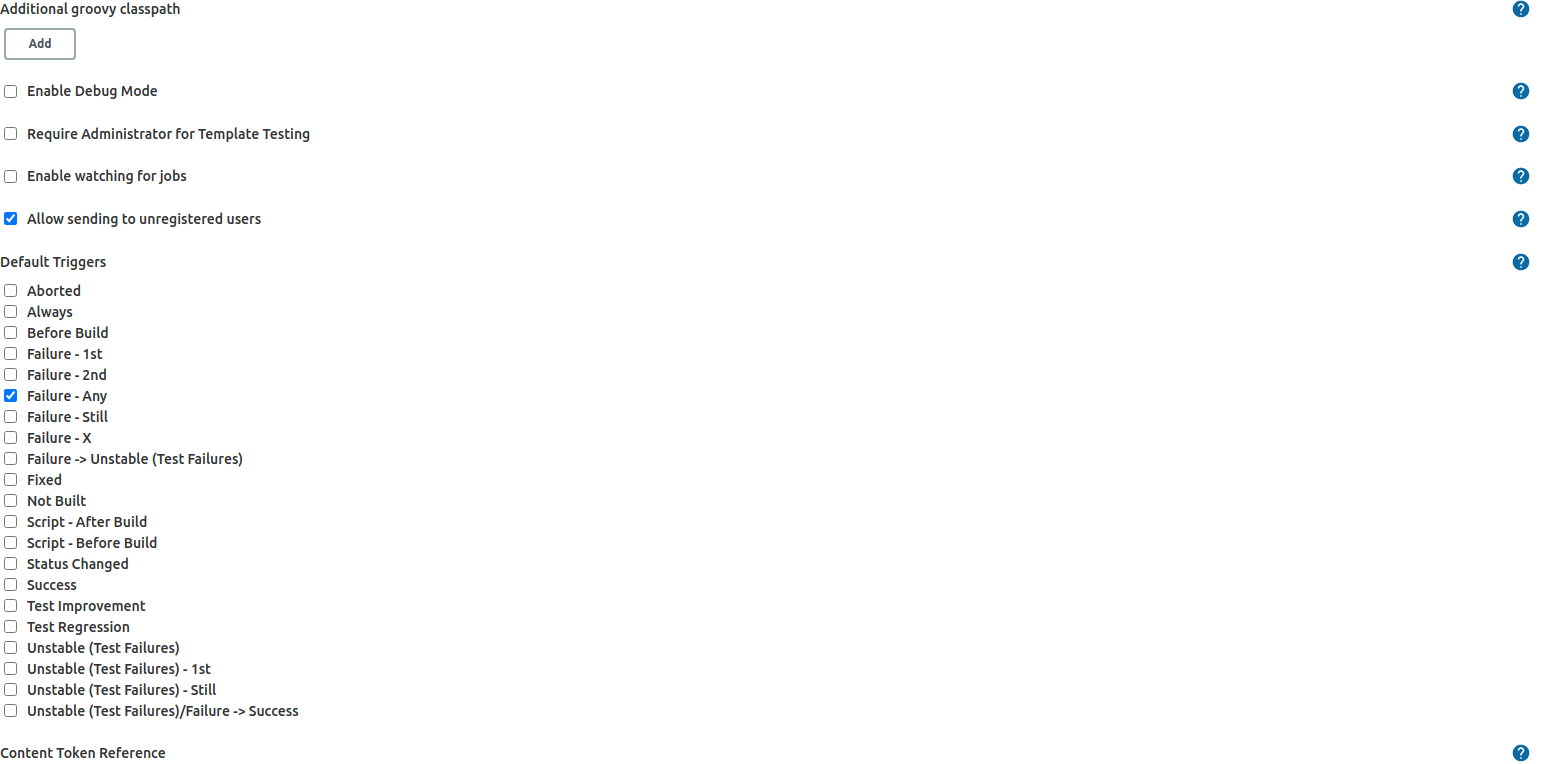

Step setup extended E-mail notification part III

extended email notification part III

6.2. Telegram notification

Telegram notifier:

Integrate Jenkins with Telegram

Instructor Demo: Deploy to Docker

The instructor will demo a practical example how to Deploy an App to a Docker container using Jenkins

questions bumper

Progress



Kahoot

The instructor will start a Kahoot
  1. Kahoot.com  Duplicate of Jenkins

  2. and supply a Game Pin to the trainees

The trainee will visit the site

Start kahoot as trainee and wait for the Game pin

Follow-Up trainings

Consider the following trainings after this workshop
  • Docker CN100

  • Docker Workshop for KPN (Friducation)

  • Visit the site of Global Knowledge and Mirantis regarding Docker trainings

Follow-Up

Evaluation

This will be done by KPN itself, but a very short verbal evaluation may suffice

Progress



Finish

Thank you for your attending and attention

Share contact information if applicable???

Resources
